Lighting controls are a type of smart lighting technology that allows you to adjust the amount, quality, and characteristics of light in a specific area. Dimers are a good example of lighting controls.
The two main types of dimming controls used in outdoor lighting fixtures are the DMX (Digital Multiplexing) and DALI (Digital Addressable Lighting Interface). To conserve energy, they use automated controls. However, both of these dimming controls are unique and have their differences.
Are you excited to learn more? Let’s begin by knowing the meaning of these controls.
What is DMX?
Digital Multiplex (DMX), often written as DMX512, is a digital control protocol that lets you control lighting fixtures remotely. Many people assume it controls up to 512 fixtures, but that number actually refers to channels, not fixtures. Each DMX link is called a universe, and one universe carries 512 channels. So the number of fixtures you can run depends on how many channels each fixture uses. For example, an RGB fixture needs three channels, which means one universe controls around 170 RGB fixtures.
DMX is a centralized lighting control system, so all the fixtures and luminaires respond to a single control panel. It is also a one way protocol, which means the controller sends commands but the fixtures never send data back. Because it is fast and reliable, it remains one of the preferred systems for many applications, and it is especially popular in the sports industry.
The control unit uses RS-485 signaling to send data across the network. RS-485 supports multidrop wiring, so you can connect many fixtures to a single controller along one data line. This lets a large number of loads share the same control unit while keeping the wiring simple.
Using the RGB led lights, the DMX controller can also adjust the color and color temperature of the fixtures. This control is so fast that the color changes almost instantly.

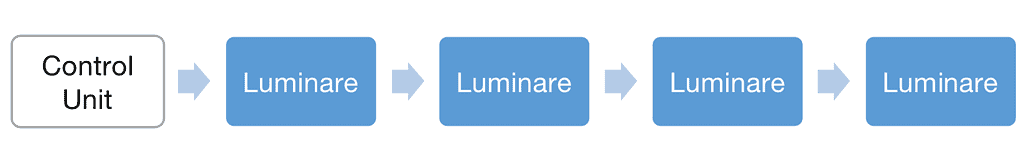

Here’s a diagrammatic representation of how the DMX system works;
What is DALI?
Digital Addressable Lighting Interface (DALI) is a two-way open protocol that uses multiple control points to connect to several luminaires. Because it is two way, the fixtures can send status information back to the controller, not just receive commands. This is one of the main differences between DALI and DMX.
Unlike the DMX control panel that is centralized, DALI is an addressable system. Each luminaire has its own address, so you can regulate individual lights to make them brighter or dim. It covers a maximum distance of about 300m and employs a two-wire control line.
A single DALI bus can control a maximum of 64 individually addressable luminaires, and it offers 254 dimming levels for smooth brightness adjustment. You can also use pre-set scenes to change illumination patterns at specific times of day, in addition to dimming and on/off operations.

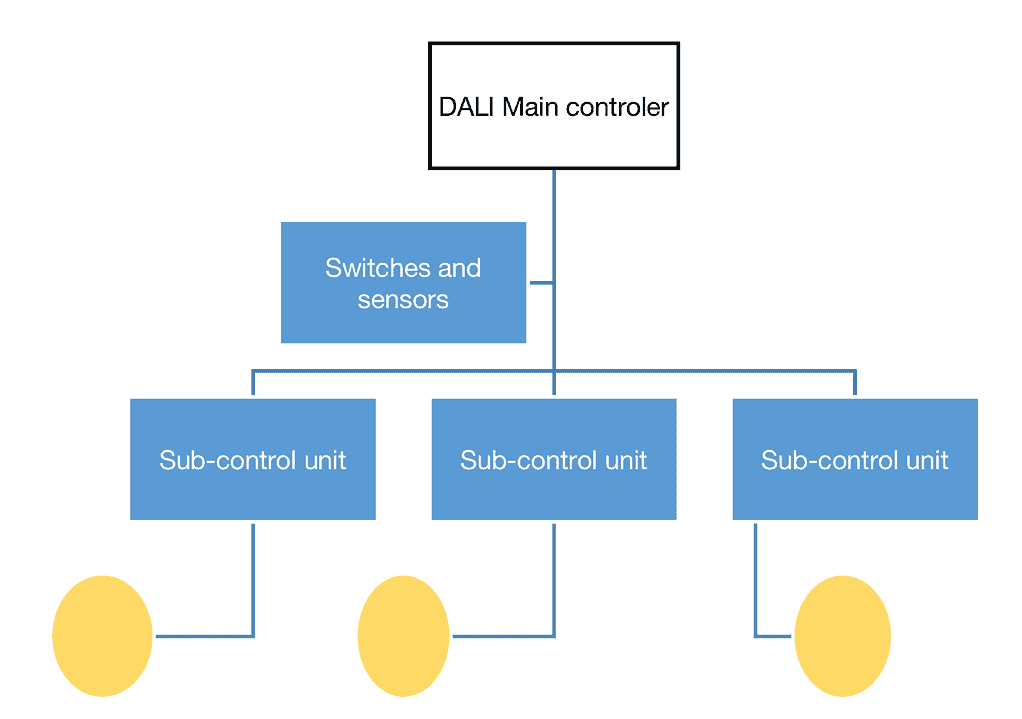

Below is an illustration of the DALI system:
Now that you better understand how DMX and DALI systems are, it is important to also know some of their similarities and differences. Let’s dig right in.
Similarities between DMX and DALI
There are a few similarities between DMX and DALI that make them applicable in many settings. Here are three main ones;
1. Distance Coverage
One of the similarities between these two types of control systems is the maximum distance they cover. Both systems can cover a maximum of 300 meters from the central controller.
2. Control Panels
Both of these systems use control panels to give commands to the light fixtures to either increase or decrease the brightness. The operating speed might differ due to the wiring, but they both rely heavily on the control panels.
3. Applications
DMX and DALI lighting controls can be used in similar applications. For instance, both controls are used in high mast pole lights. What are high mast poles? They are tall poles that hold more than one light fixture.
The high mast poles provide lighting in different areas such as stadiums, highways, airports, bridges, etc. Now that you know the similarities between DMX and DALI, let us look at some of their differences.
Differences between DMX and DALI
DMX and DALI have distinct differences intended to identify whether or not they are suitable for a given application. Some of these differences are outlined in the table below.
| DMX | DALI | |
| Speed | Fast speed control system due to the | Slow speed control system |
| Number of connections | Can have a maximum of 512 connections | Can have a maximum of 64 connections |
| Type of control | Centralized control system | Decentralized control system |
| Color control | Using the specialized RGB-LED, you can handle color control using DMX | It does not support color change; only fading of the lights |
| Cable requirement | With the maximum of 300m coverage, it requires a Cat-5 cable requirement which is also attributed to its fast speeds | Still with a maximum of 300m coverage, it uses a two-wire connection setup |
| Automatic requirement | Cannot perform automatic addressing | Can perform automatic addressing |
| Dimming control | Easy to use | A bit complex and might require some training before use |
As mentioned, DMX and DALI are used in different areas depending on the intended lighting requirement of the location. Both are very reliable systems and energy-efficient too.
Can I Use DMX and DALI Together?
By now you may be wondering whether you have to choose one system or the other. In many projects, you do not. DMX and DALI can work together in the same building, and combining them often gives you the best of both protocols.
The two systems handle different jobs well. DMX manages fast, dynamic color scenes, while DALI handles precise, addressable dimming and status feedback. When a project needs both, you can run them side by side and let each control the areas it suits best.
How the Two Systems Are Combined
You cannot connect DMX and DALI directly, because they use different signals and wiring. Instead, you link them through a protocol gateway or a control system that speaks both languages.
The gateway translates commands between the two protocols. This lets a single control platform trigger DMX color effects in one zone and DALI dimming scenes in another, all from the same interface.
A Typical Mixed Project
Think of a hotel or a large retail space. The lobby and facade may use DMX for animated color lighting, while the offices, corridors, and guest rooms use DALI for smooth dimming and fault monitoring.
This split keeps each area on the protocol that fits its purpose. It also avoids the common mistake of forcing one system to do a job it was never designed for.
When Combining Makes Sense
Use both systems when a project has clearly separated needs, such as dynamic display lighting in public areas and steady functional lighting in work areas.
Stick to a single protocol when the project is small or when every zone needs the same type of control. Adding a gateway to a simple job only raises cost and commissioning time without a real benefit.
Below is a list of the application areas and the type of system most preferred in each setting.
Application Areas for DMX and DALI
Roads and Highways
Road lighting is critical, enabling drivers and pedestrians to maintain clear visibility. High‑mast lights are mounted at regular intervals to deliver uniform roadway illumination. Standard functional highway lighting typically uses DALI or 0‑10V controls. DMX‑512 is reserved for road‑adjacent architectural and landscape lighting where dynamic color effects are required.
Sport Fields
Different sports demand tailored lighting performance. Both DALI and DMX are viable for sports field lighting, with the core goal to deliver comfortable, non‑distracting lighting for athletes and audiences.
For example, tennis courts often use DALI‑controlled high‑mast fixtures. Its individual fixture addressing works well for mid‑size courts with static dimming requirements.DMX‑512 shines for spectator‑facing dynamic show effects. Its fast refresh supports near‑instant color shifts to enhance audience entertainment.Large multi‑purpose arenas frequently combine both protocols: DALI handles general field operational lighting, while DMX runs dynamic visual effects.
Commercial Settings
Large commercial sites such as airports deploy high‑mast lighting that demands stable, reliable control for staff and operational safety.Both protocols see use in commercial environments. DALI is widely adopted for general operational lighting that needs dimming, scene control and energy management. DMX is selected only for zones requiring dynamic color‑changing visual effects.
Factors to Consider When Choosing between DMX and DALI Lighting Systems
As covered above, DMX and DALI each perform well for specific use‑cases and may be combined within a single project. There is no universal correct choice, but these criteria guide your decision‑making.
Installation
Installation workflows differ meaningfully between protocols.DMX requires strict daisy‑chain wiring and proper end‑of‑line termination to avoid signal faults. DALI relies on device addressing and thorough commissioning. Neither system operates as true plug‑and‑play. Consult an experienced lighting technician for project‑specific material estimates and timelines.
Lighting Requirements
Clarify your project’s core lighting objectives.Choose DMX when fast dynamic color transitions and lighting effects are central to the design. Choose DALI for steady dimming, scene scheduling, fixture status feedback and energy‑saving workflows.Hybrid architectures are available if your project needs capabilities from both protocols. Always verify driver and fixture compatibility early in design.
Common Mistakes When Choosing Between DMX and DALI
Most selection errors don’t come from misunderstanding the protocols themselves. They come from matching the wrong protocol to the actual job. These are the mistakes we see most often.
Choosing DMX for a Static Architectural Space
DMX is built for fast, dynamic changes, which makes it the default choice for stages, events, and entertainment. But for offices, hotels, and other spaces that mainly need smooth dimming and stable scenes, DMX often adds complexity you’ll never use. Owners end up paying for real‑time control that a DALI system would have handled more simply and at lower cost.
Choosing DALI for High‑Speed Dynamic Effects
The reverse mistake is just as common. DALI is excellent for energy management, addressing, and status feedback, but its refresh speed is not designed for rapid color chases or music‑synced effects. If your project needs fast, continuous visual movement, DALI will feel sluggish where DMX would look seamless.
Ignoring Fixture and Driver Compatibility
Both protocols only work if the fixtures and drivers actually support them. Buyers sometimes select a protocol first and discover later that their chosen luminaires ship with the wrong driver type. Always confirm that the fixture’s driver matches the protocol before committing to a design.
Underestimating Commissioning Effort
DALI’s addressing is powerful, but it takes proper commissioning to work. Teams that skip this step end up with fixtures that won’t respond to the right group or scene. DMX avoids addressing but demands correct wiring topology and termination instead. Neither protocol is “plug and play”—each just moves the effort to a different stage.
Deciding on Cost Alone
A protocol that looks cheaper upfront can cost more over the life of the system. DMX may save on control hardware but adds labor during wiring and troubleshooting. DALI may cost more initially but reduces maintenance time through status feedback. Judge cost across install, operation, and upkeep—not just the purchase order.
Procurement Note: Before locking in a protocol, ask one question: does this space change its lighting often, and how fast? Frequent, fast changes point to DMX. Scheduled scenes, dimming, and energy control point to DALI. Answering this early prevents the most expensive selection mistake—buying the right fixtures for the wrong control system.
Frequently Asked Questions
Is DMX or DALI more expensive to install?
The cost depends less on the protocol itself and more on system size and fixture count. DMX often has a lower upfront hardware cost for simple color-based setups, since it runs many fixtures along one data line without individual addressing.
DALI can cost more initially because each fixture needs an addressable driver and individual commissioning. However, DALI often lowers long-term costs through energy savings and easier fault detection. For large or long-running buildings, that operating saving can outweigh the higher install cost.
Can I expand a DMX or DALI system after installation?
Yes, but the two systems scale differently. With DMX, you add fixtures along the existing data line until you run out of channels in a universe. Once you exceed 512 channels, you need to add another universe and controller.
DALI expands more flexibly at the fixture level, since each bus supports up to 64 addressable devices. Adding a light usually means assigning it a new address rather than rewiring the whole line. For projects that expect future growth, DALI’s addressing makes expansion cleaner.
Can DMX or DALI work with my existing LED fixtures?
Not always directly. The fixture must be built for the protocol you choose. DMX requires fixtures with a DMX decoder or DMX-ready driver, while DALI requires a DALI-compatible driver inside each luminaire.
If your current fixtures are standard on/off LEDs, you will usually need to replace the drivers or the fixtures to make them controllable. Before any retrofit, check the driver label or datasheet to confirm which protocol it supports. This one check prevents most compatibility surprises during installation.
Which system is easier to troubleshoot when something goes wrong?
DALI is generally easier to diagnose because of its two-way communication. Each fixture can report its status back to the controller, so you can pinpoint a failing driver or a specific address without inspecting every light.
DMX, being a one-way protocol, does not send data back. When a fault appears, you often trace it manually along the data line by checking cabling, addresses, and terminations. For maintenance-heavy environments, DALI’s feedback saves significant troubleshooting time.
Conclusion
The technology used in lighting controls has evolved over the years. DMX and DALI are on top of the game. Both of these systems are compatible with most LED lights.
Your choice of the system to use jots down to the intended purpose. You need to choose a control system that matches the requirements of the lighting project.
The cost of installation is also a crucial factor to consider. You can consult a lighting professional to guide you on the best type of system to choose from two. And remember, it is also possible to integrate both controls in one system.
